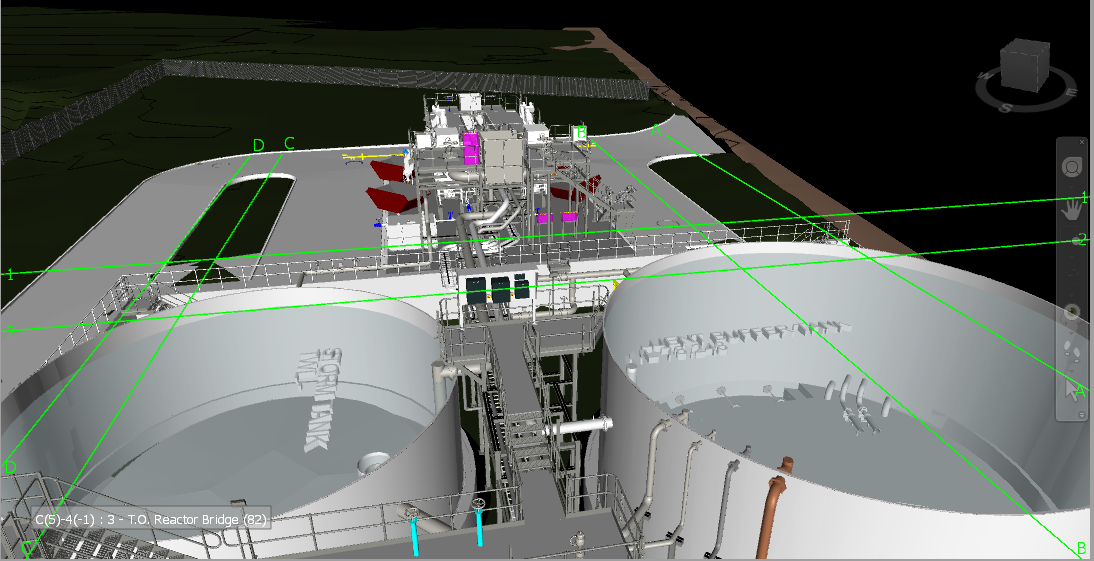

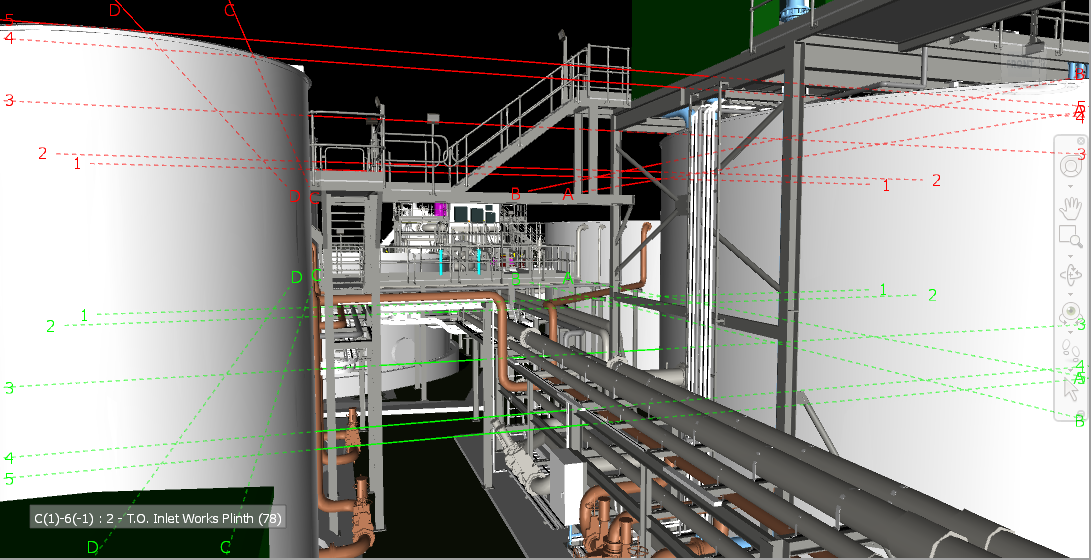

Structures

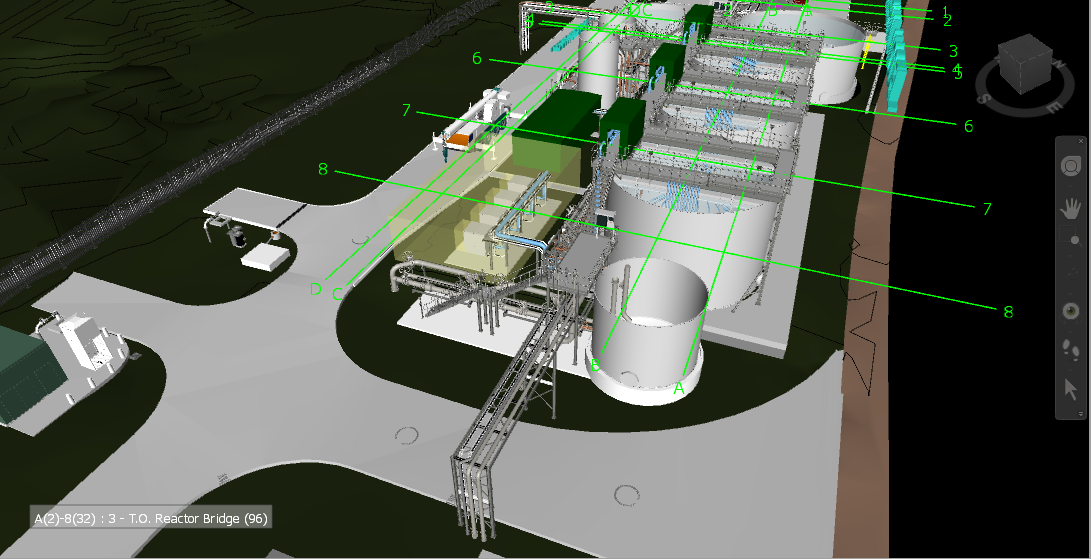

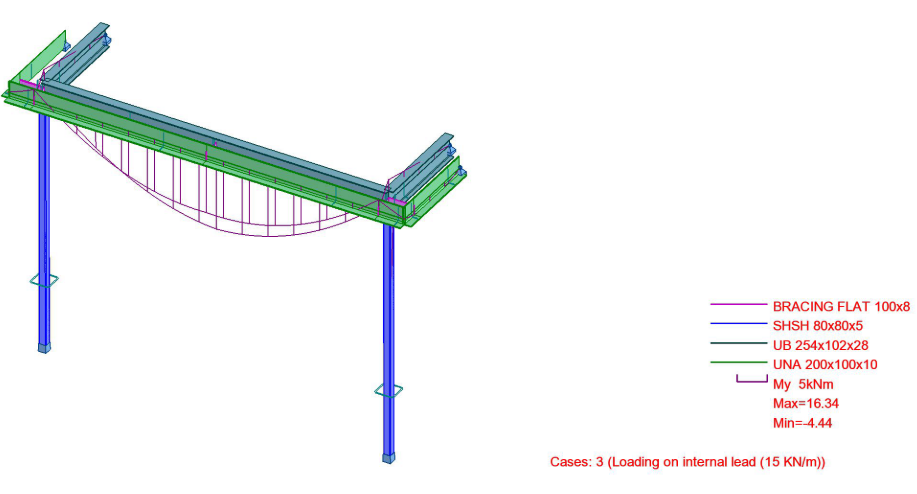

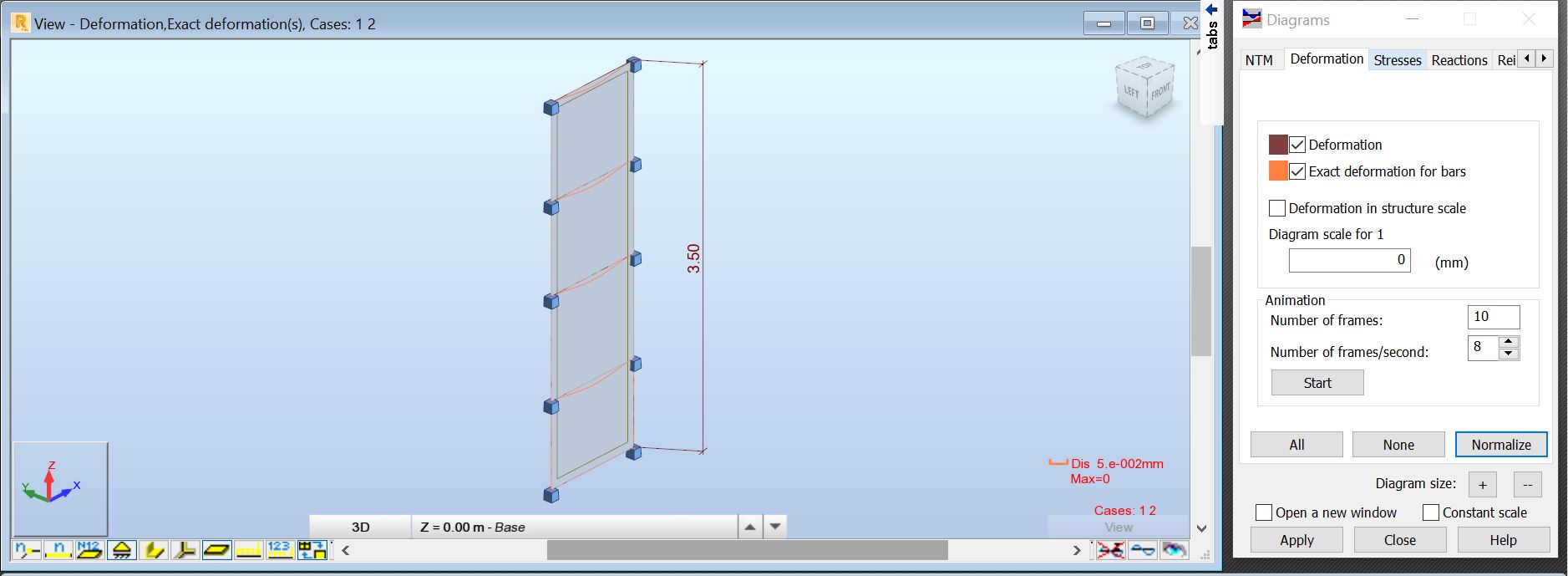

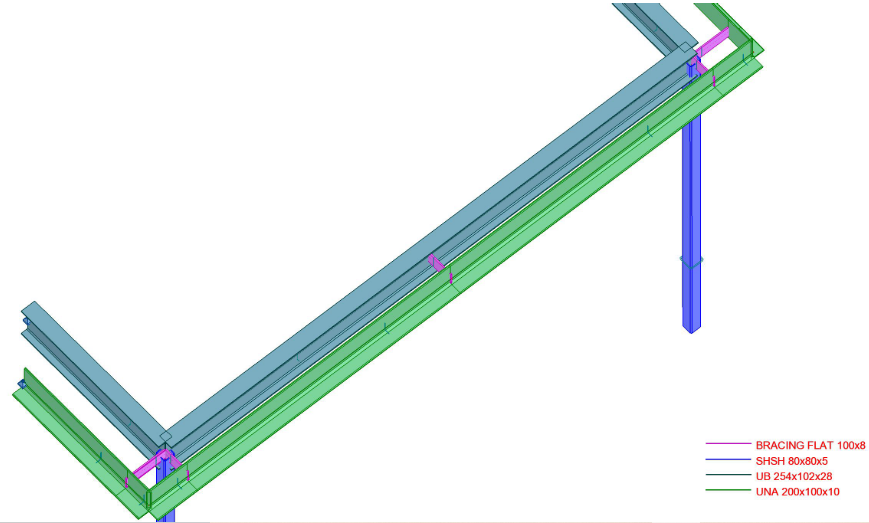

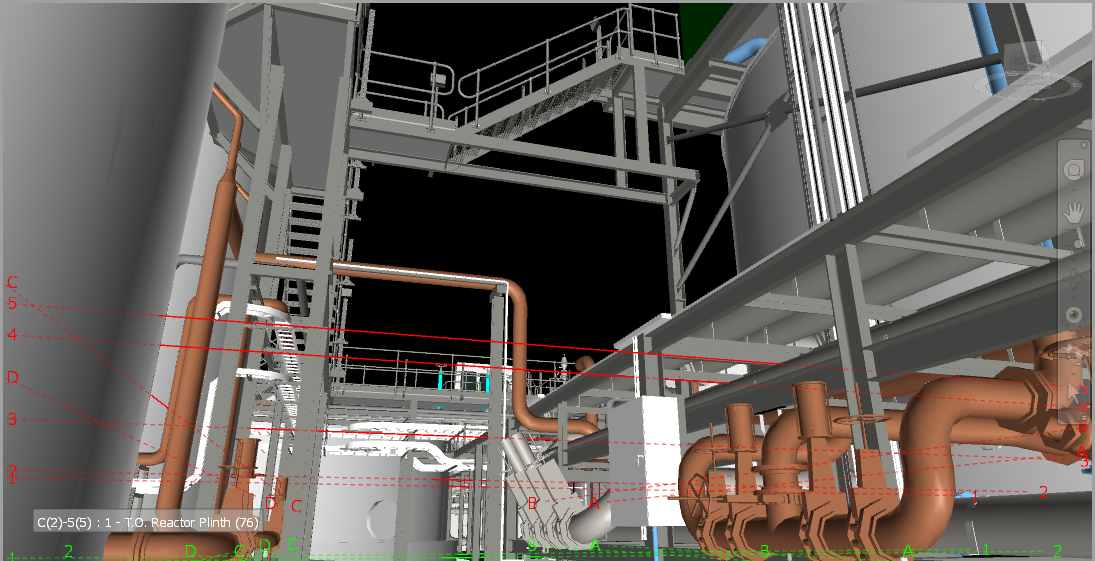

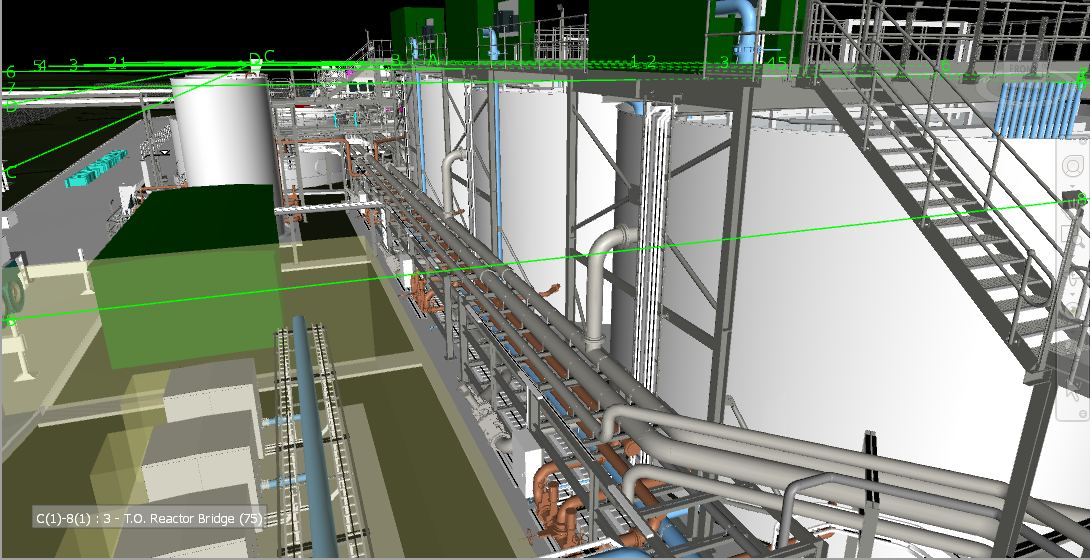

Steel Frame Stability
Steel frame stability checks/analysis of even the most complex frames.
We work for:
- True value added to every project
-
The key to good design is clear and simple communication
-
Our experience & know-how is constantly changing and evolving with every new
project
-
We have been in business since 2007 and we have successfully completed over
875 projects by 2020
-
We provide diverse skills and resources to solve even complex frames;
BCAR-ready and BIM-compliant.
Click on the images to view
them better!

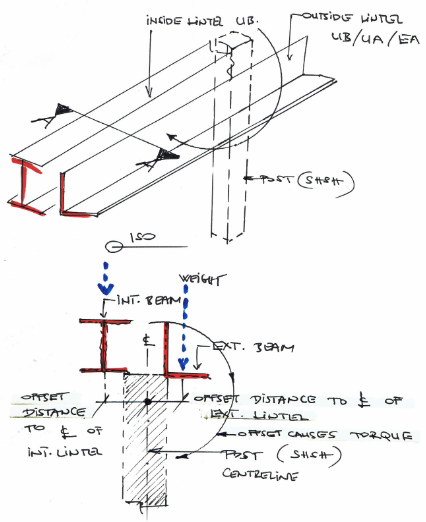

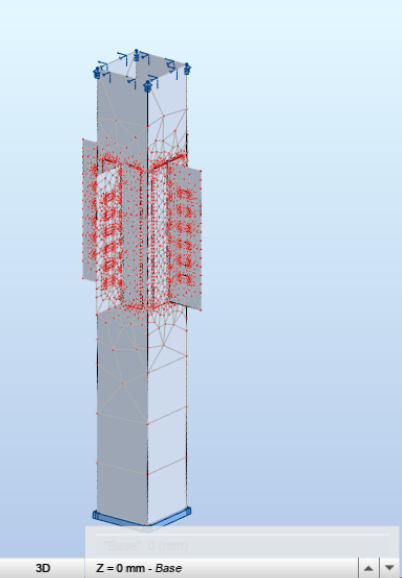

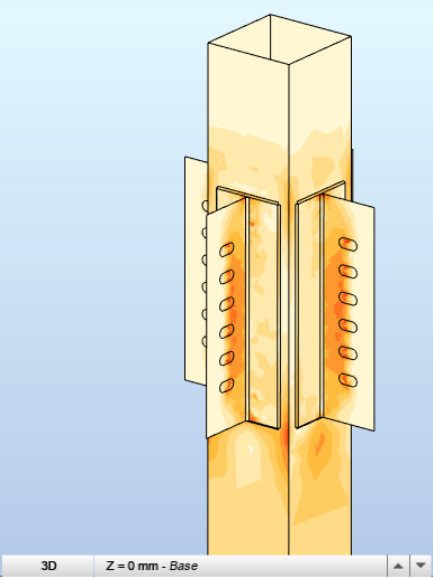

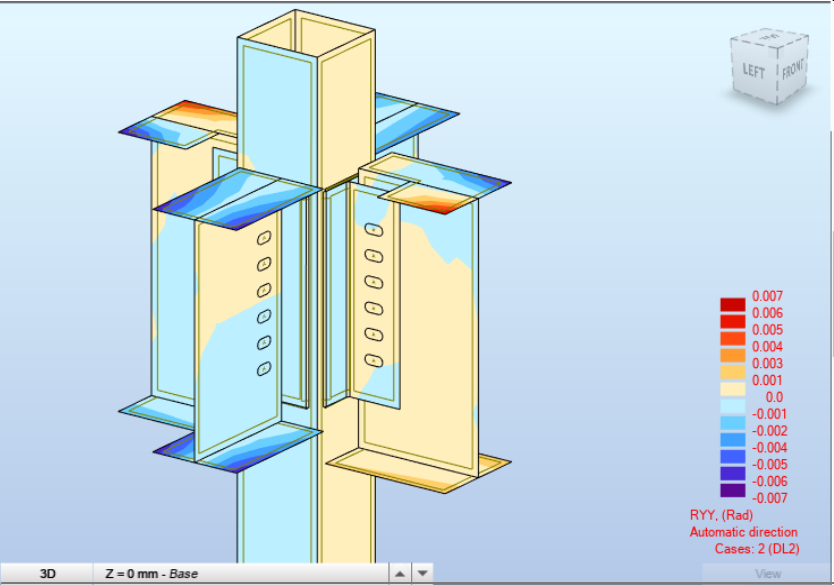

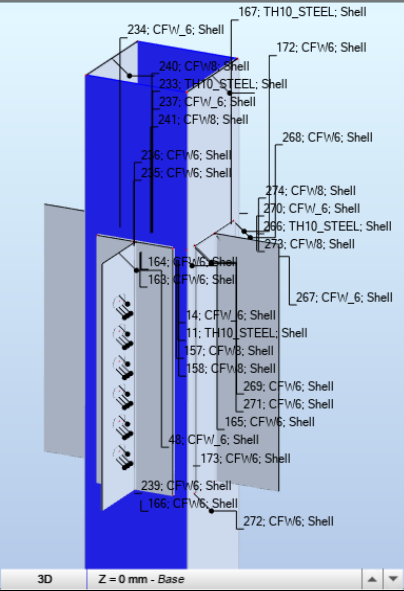

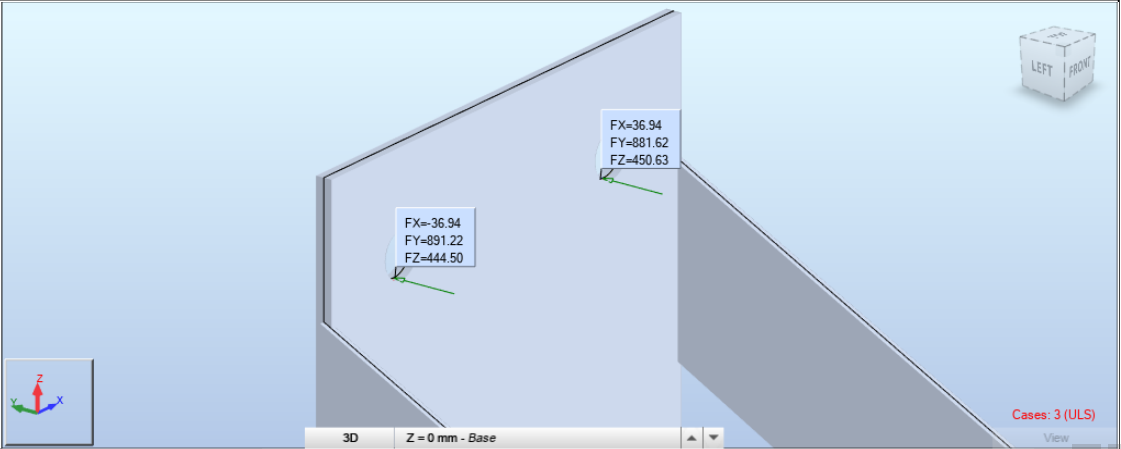

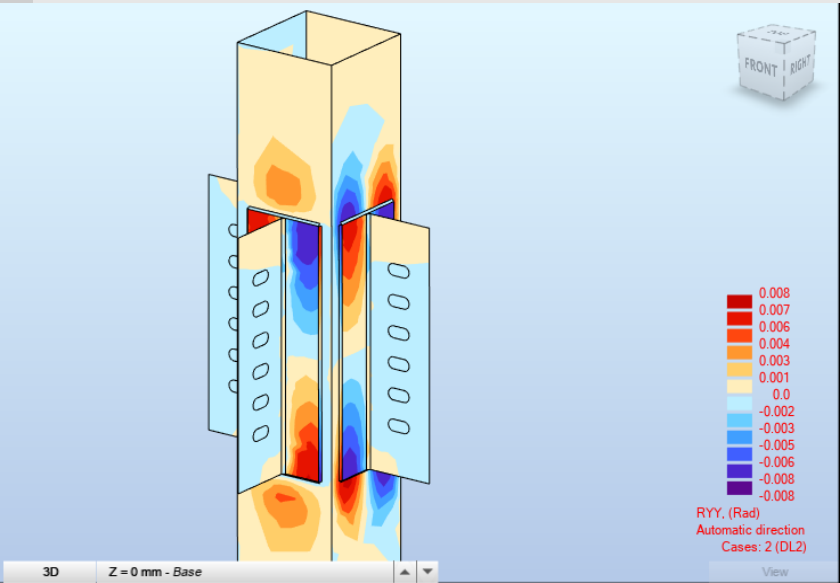

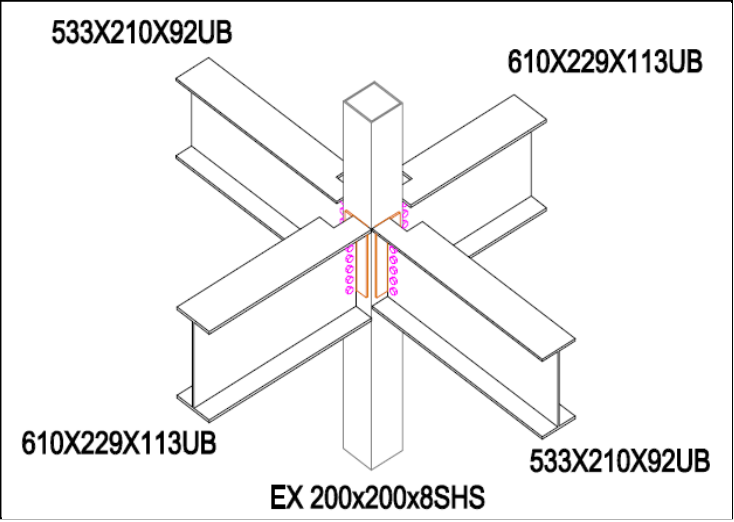

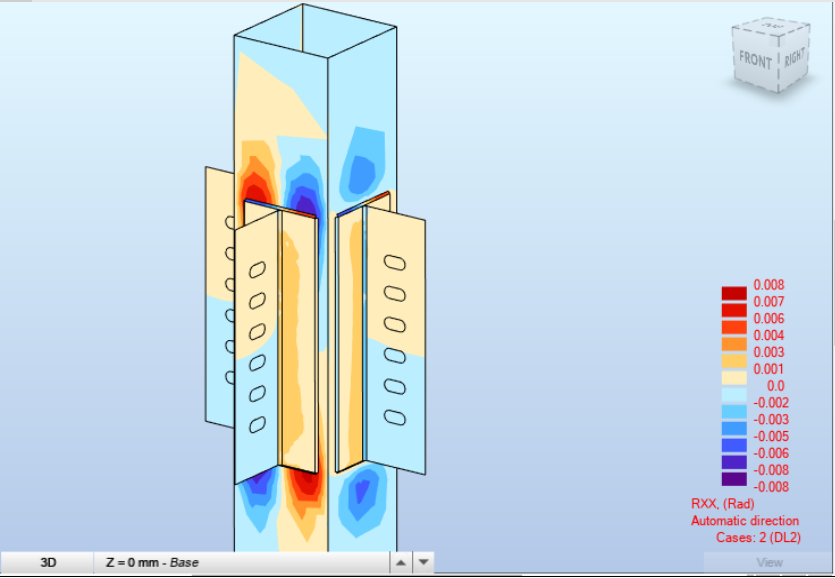

Specialist Steel Connection Designs
Steel connection designs from a specialist for complex tasks.
We work for:
- A comprehensive and clear steel connection design
-

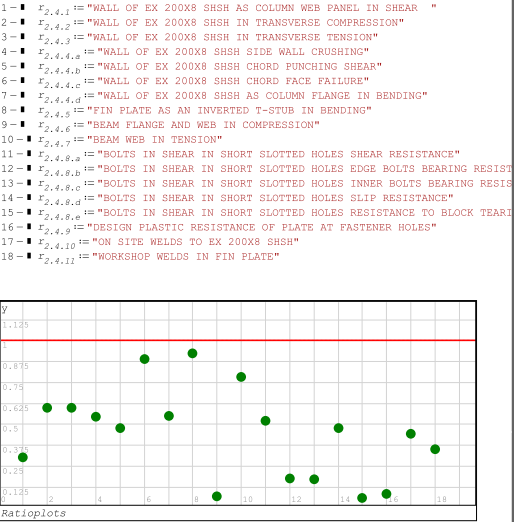

All the calculations that you would need and ready for submission
-

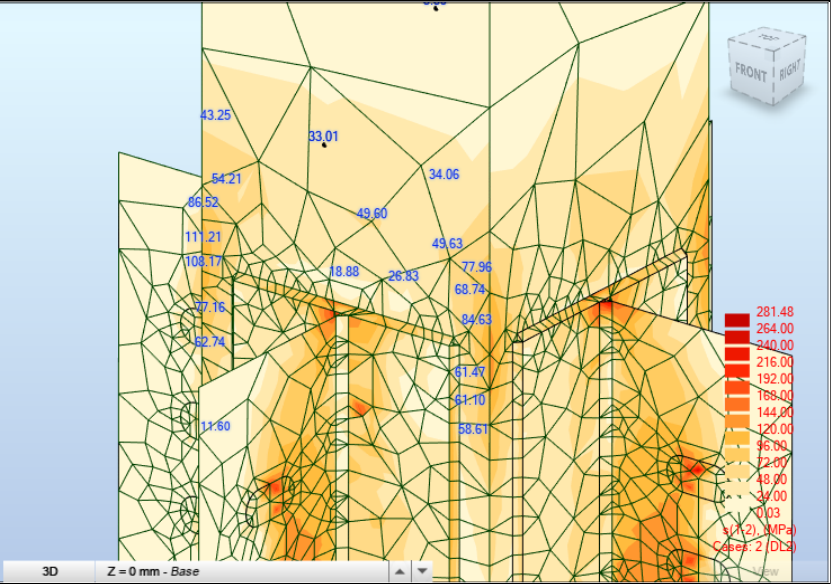

All loads and capacities as per EN1993-8 and backed by FEA where necessary
-
We listen, we learn and we design connections that suit the buildings and
economical to fabricate

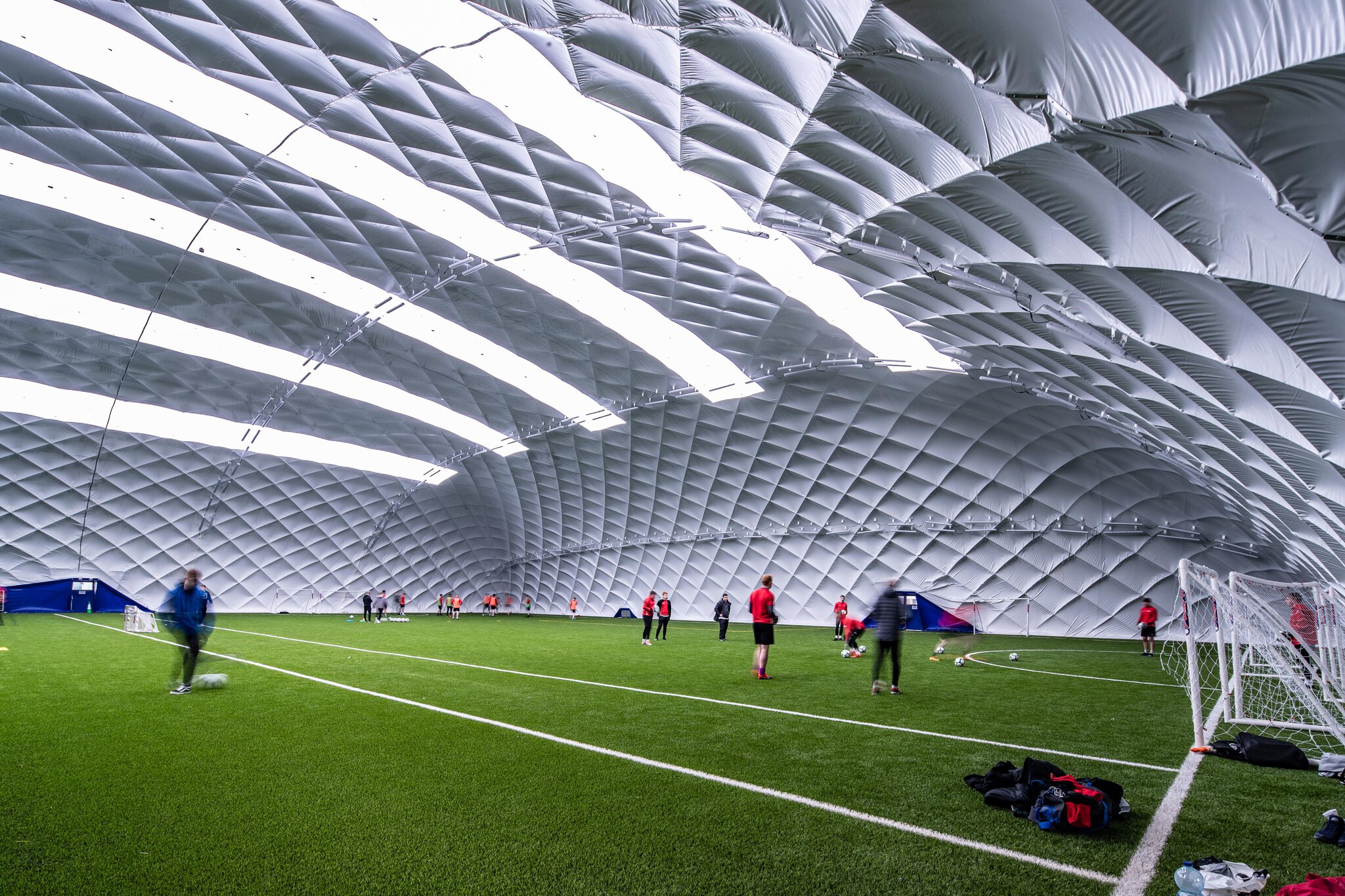

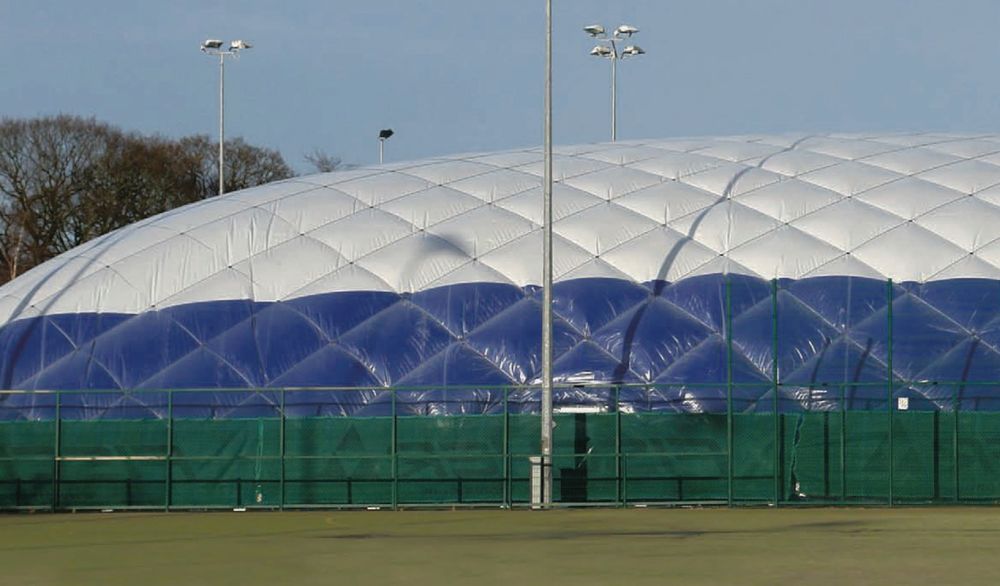

Air-Stabilised Domes
Large, stable structures without intermediate supports.
We work for:
-
Large scale structures with ultra-large spans without intermediate supports
-
Ideal to cover sports facilities, football pitches, hangars
-
Foundation design for uplift and drainage design to cater for the storm
water that comes off a large scale structure
-
Design check to all relevant EN standards and calculations ready to submit
for third party approval
- Calculations augmented by FEA where necessary

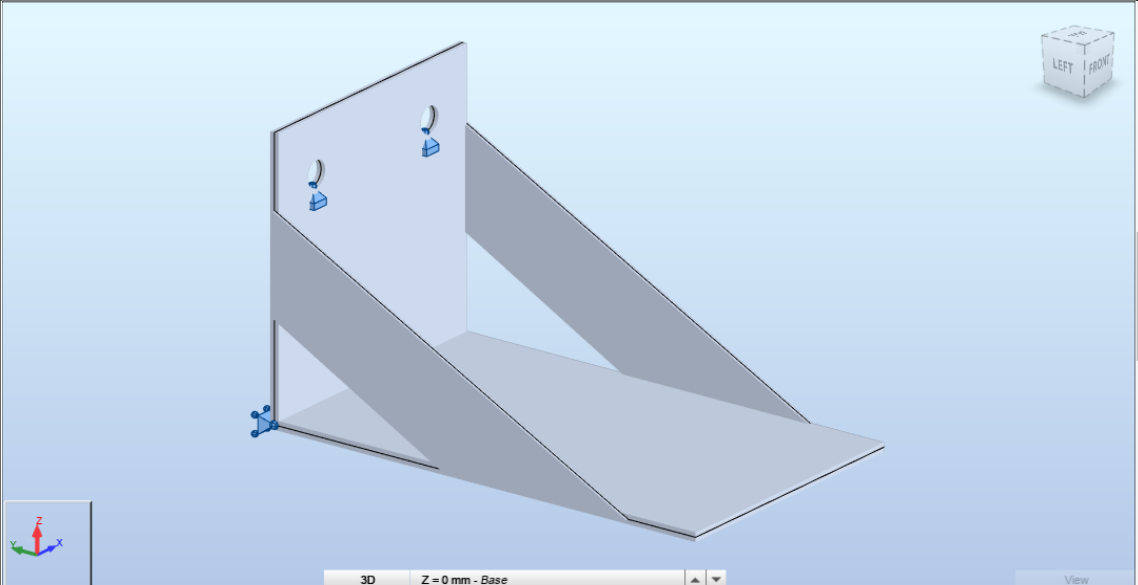

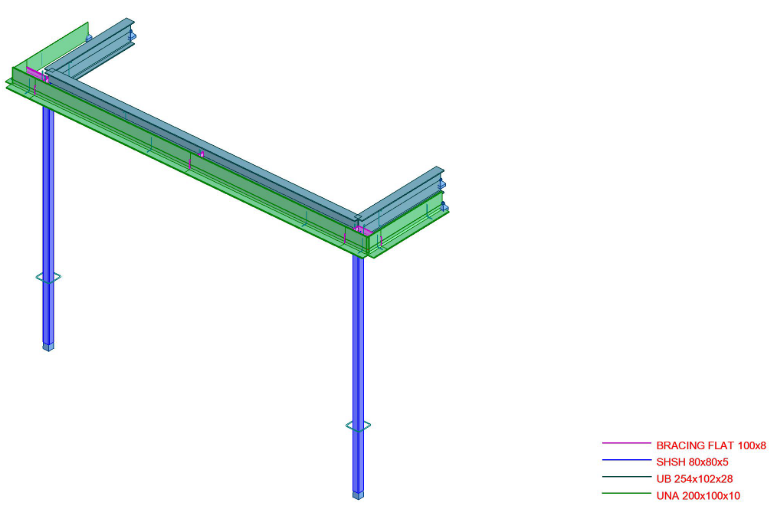

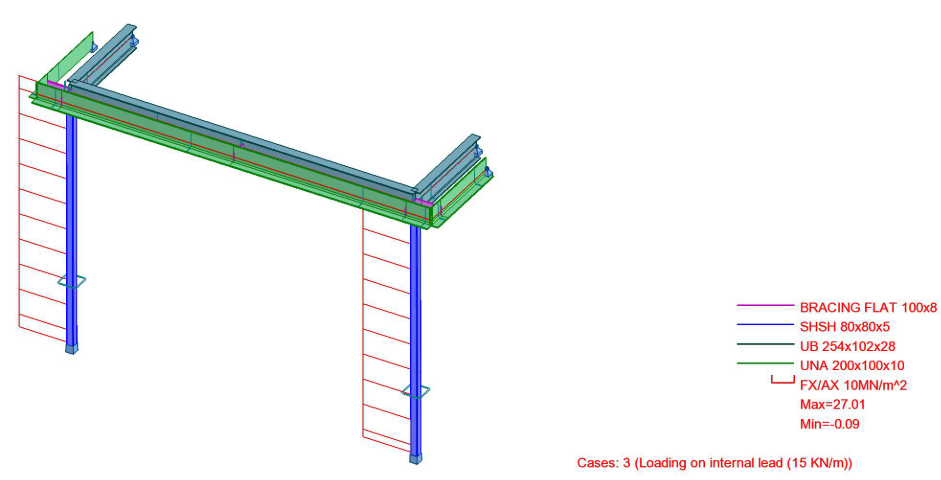

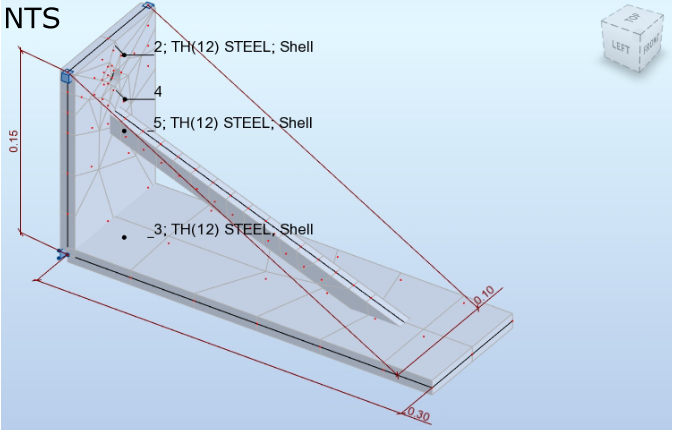

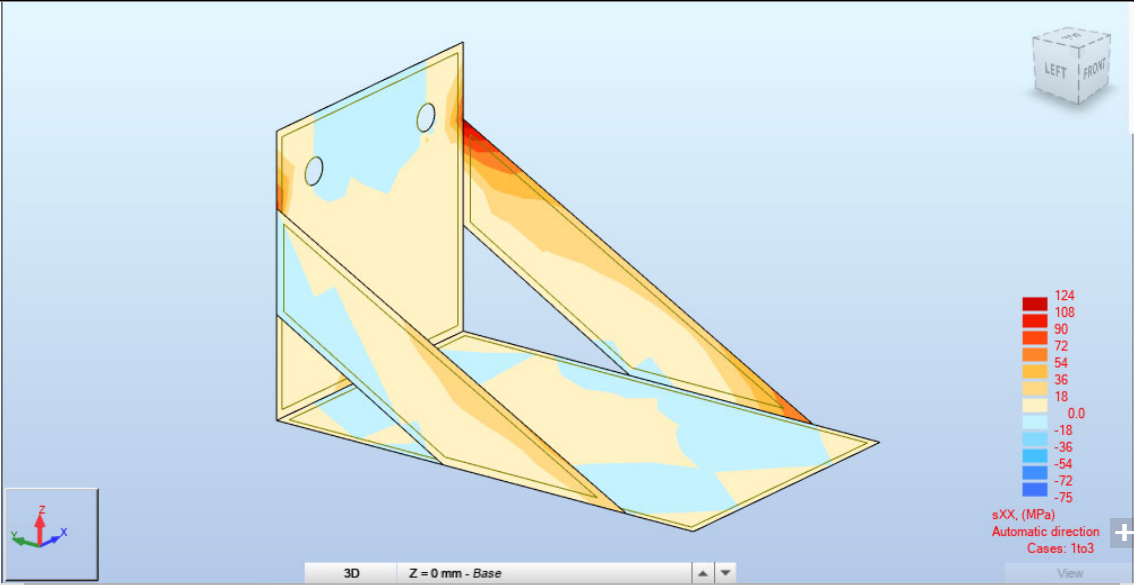

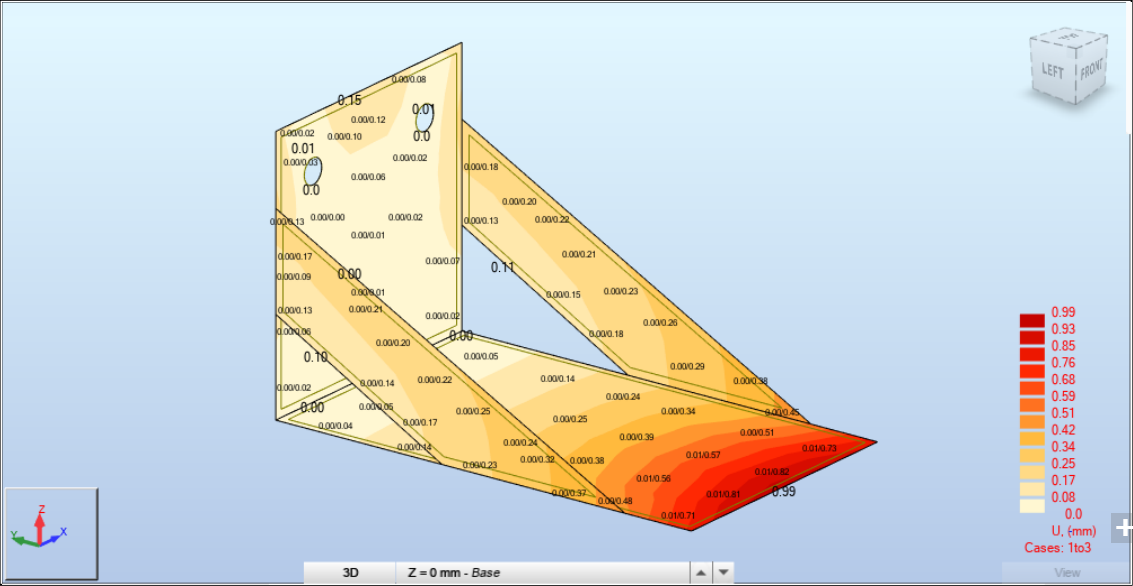

Steel Support Brackets
Professional steel and stone support brackets, adaptable to any build.
We work for:
-
Bespoke stone cladding support brackets even for the most challenging
building
-
To suit a variety of underlying substrate, cavity width (insulation
thickness) and facades support methods
-
Including overhead stones and safety critical installations
-
Design check to all relevant EN standards and calculations ready to submit
for third party approval
- Calculations supported by FEA at all times
Click on the images to view
them better!
Temporary Works and Scaffoldings
Professional scaffolding designs, adaptable to any build.
We work for:
-
Bespoke scaffolding design using system scaffolding and tube-and-fit outside
TG20 and HSE defined ‘standard scaffolding’
-
Design scaffoldings for large industrial applications: masts, turbines,
infrastructure projects
- System scaffolds: Kwikstage, Layher
- Temporary propping and facade retention design

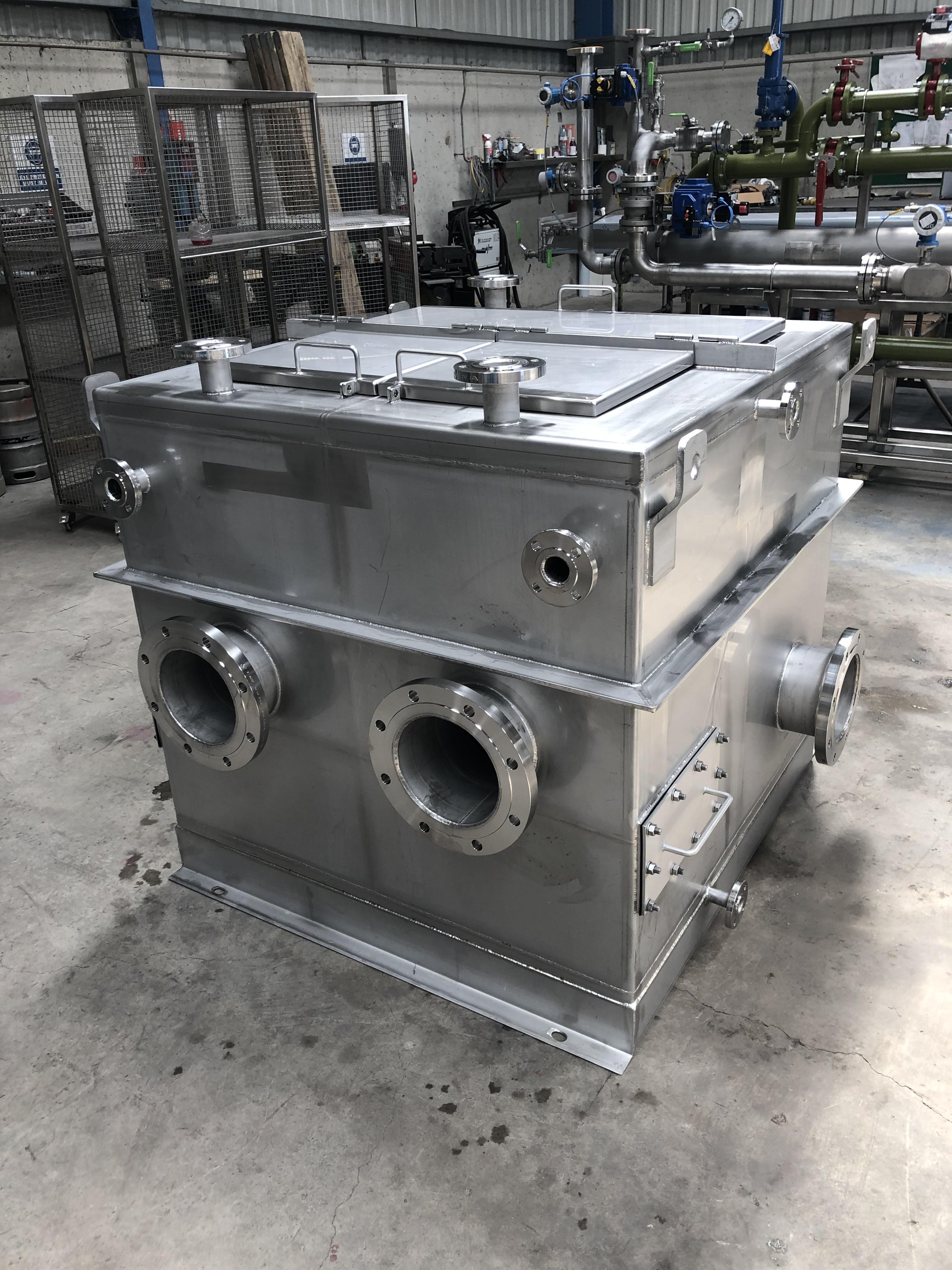

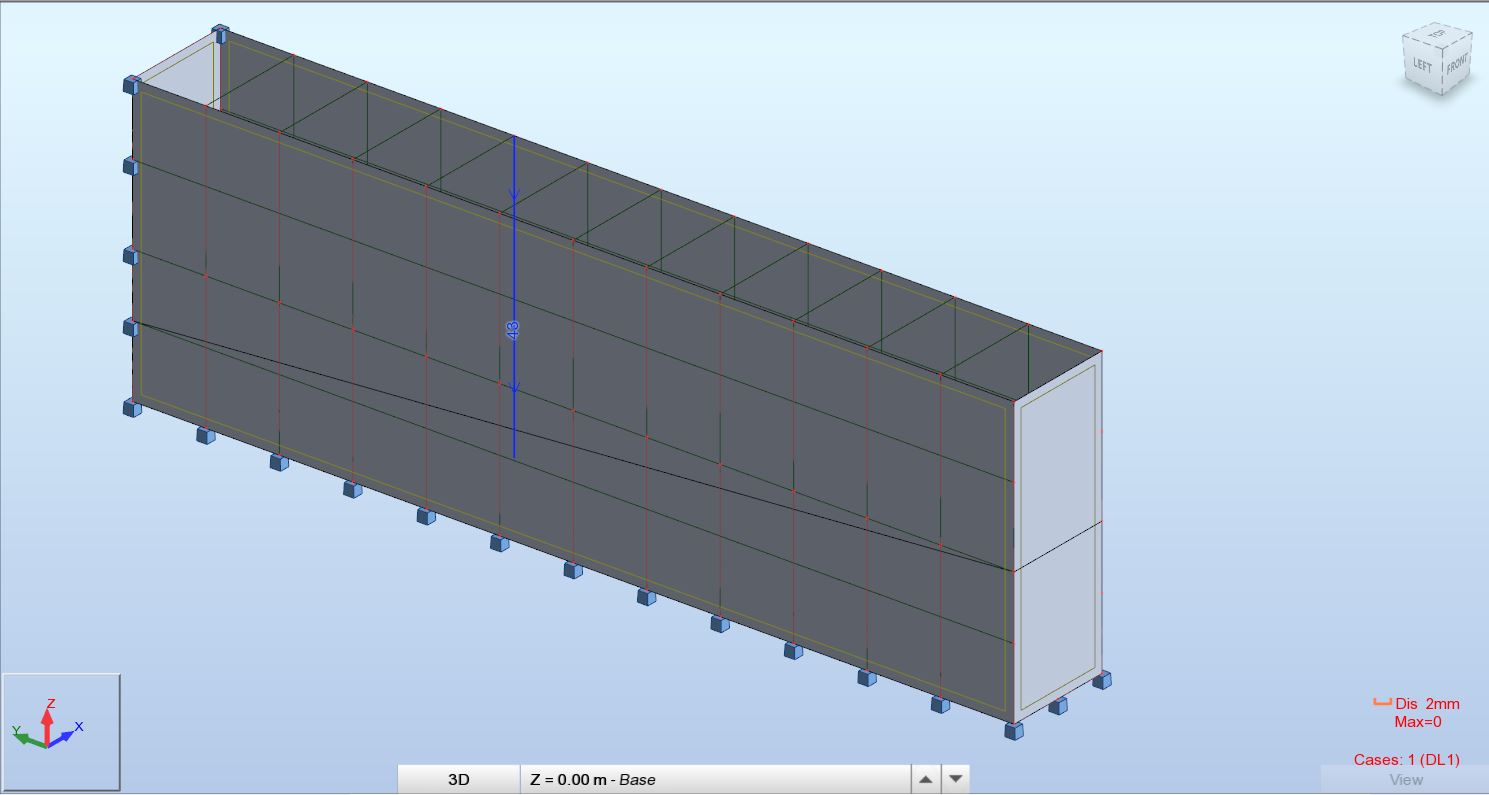

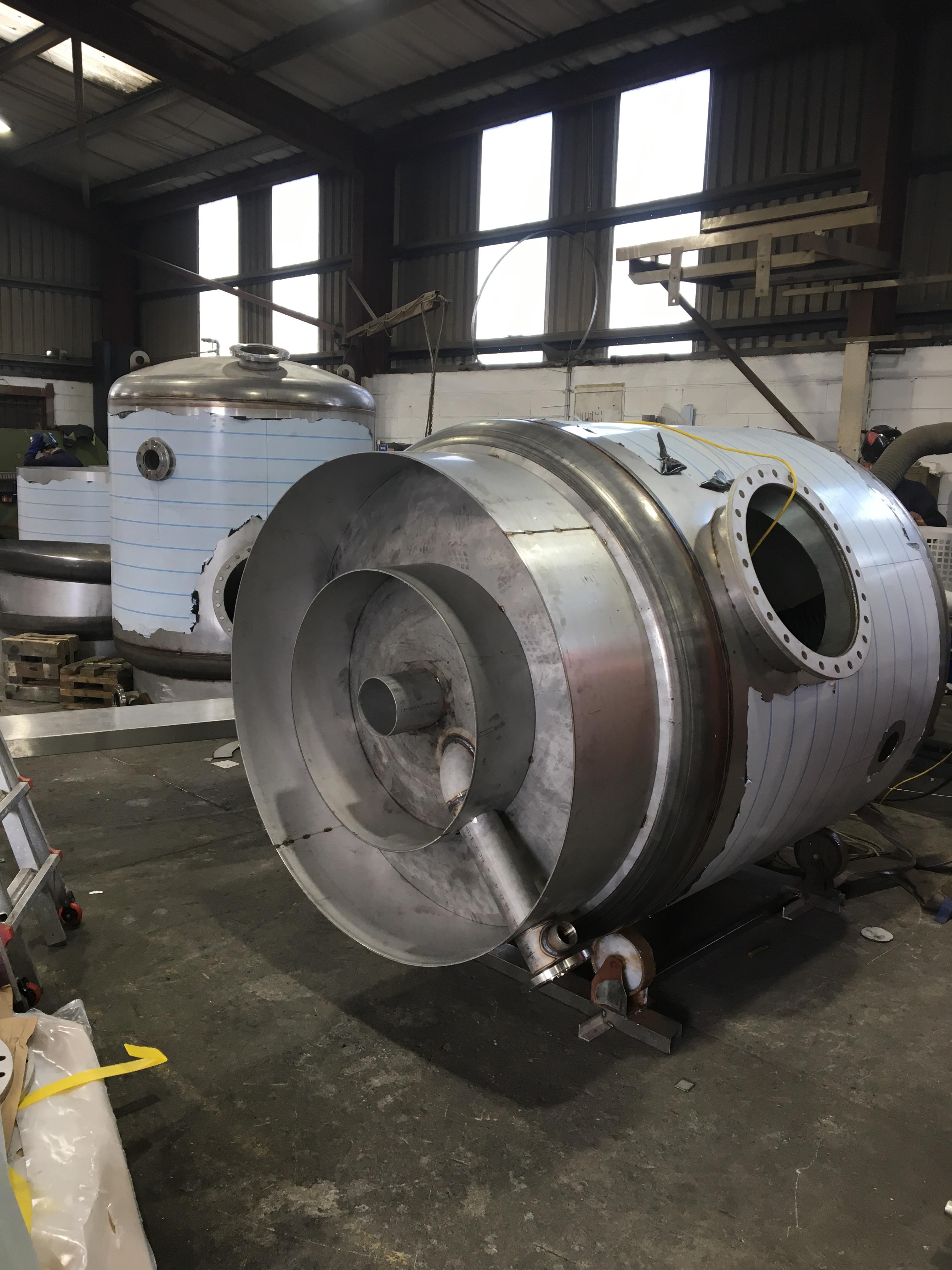

Pressure Vessels

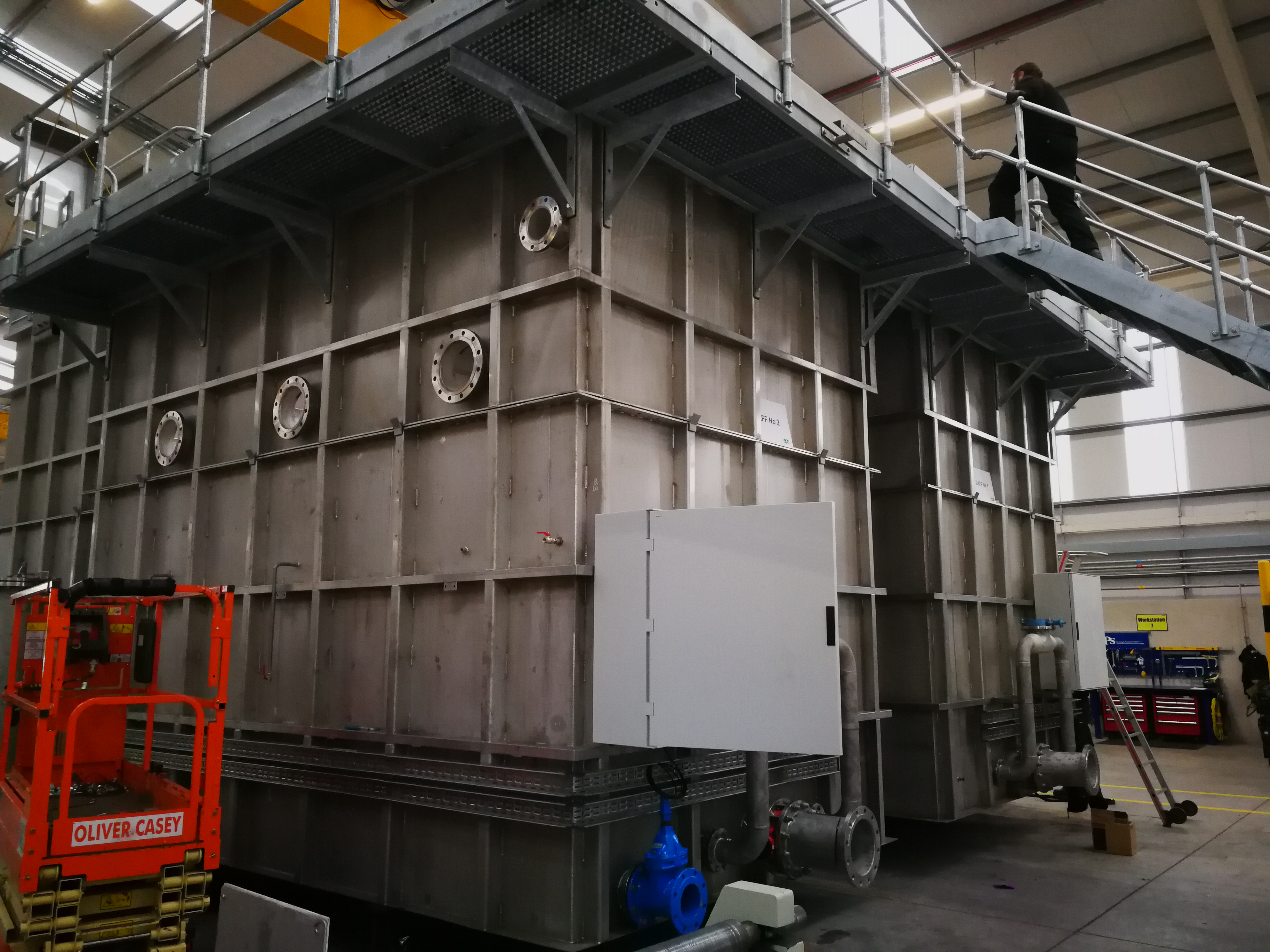

Tanks, Silos, Pressure Vessels
Vessels capable of withstanding the highest category pressures.
We work for:
- Up to Category IV, the highest category vessels
-
Based on experience, we provide a vessel design that is holistic, safety
centred and fabricator friendly
-
Design check to all relevant EN vessel standards and calculations ready to
submit for third party or notified body approval
- Calculations backed by FEA where necessary
-
We listen, we learn and we design the vessel that meets your specific
requirements
Click on the images to view
them better!
Clients
We've worked extensively with these compainies:
